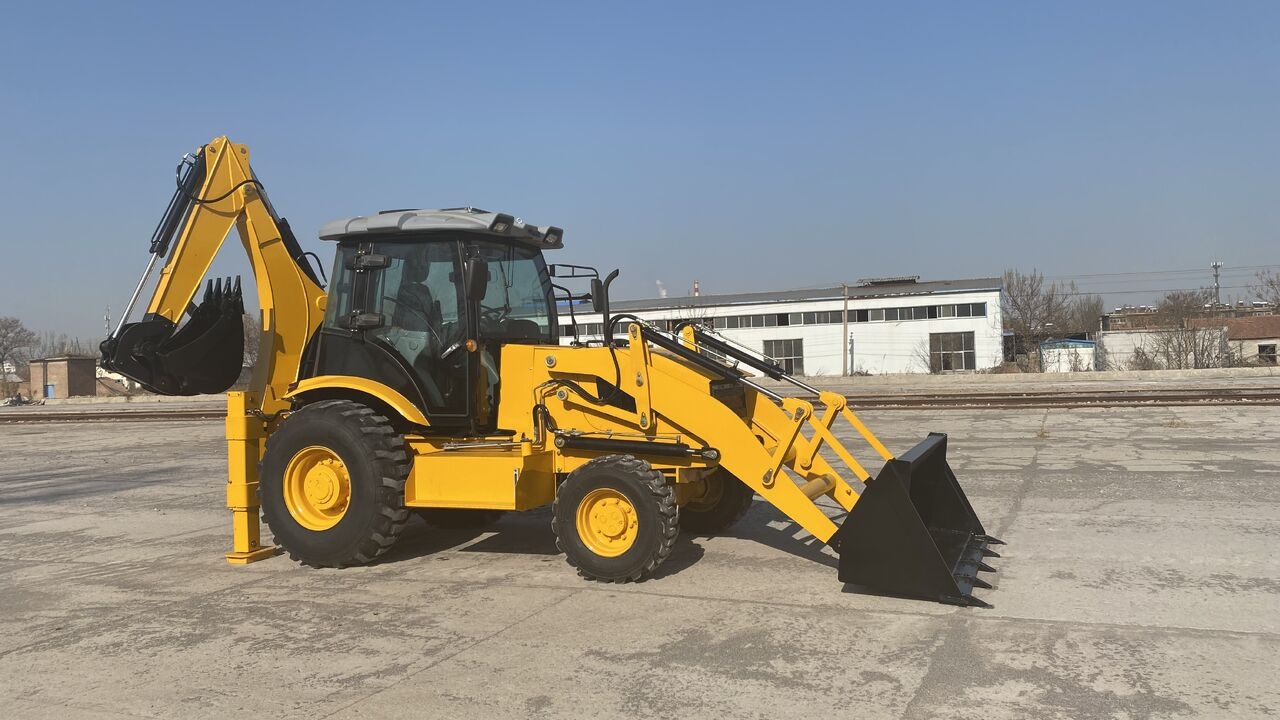

Backhoe loader HT 2800KG Backhoe Loader HT 2800KG Backhoe Loader

HT 8000KG Backhoe Loader Parameter Overall Operating Weight 8000KG Transport Dimension (L×W×H) 8000×2200×2900mm Wheel Base 2250mm Min. Ground Clearance 300mm Bucket Capacity (Loader) 1.5m³ Breakout Force 38KN Loading Lifting Capacity 2800KG Bucket Dumping Height 2800mm Bucket Dumping Distance 1062mm Digging Depth 52mm Backhoe Capacity (Width) 0.35m³ (620mm) Max. Digging Depth 4100mm Swing Angle of Backhoe 190° Max. Pulling Force 39KN Engine Model YUCHAI Engine Type In-line, Direct Injection, Four-Stroke, Water Cooling Rated Power 85KW Optional Engine DONGFENG CUMMINS 75KW / CUMMINS 92KW / CUMMINS Euro 3 75KW Steering Angle ±36° Min. Turning Radius 6581mm System Pressure (Steering) 12Mpa Axle Brand FEICHENG YUNYU Main Transmission Type Double Reduction Final Reducer Type Single Stage Final Reducer Rated Axle Load 4/18.5t Torque Converter Model YJ280 Torque Converter Type Single-stage Three Elements Cooling Method Oil-cooling Pressure Circulation Gearbox Type Fixed Shaft Power Transmission Gears 2 Forward Gears, 2 Reverse Gears Max. Speed 30Km/h Front Tyre Model 14-17.5 Rear Tyre Model 19.5L-24 Front Wheel Pressure 0.22 Mpa Rear Wheel Pressure 0.22 Mpa Service Brake Air Over Oil Caliper Brake, External Type, Self-adjusting & Self-balancing Parking & Emergency Brake Applied by operating force, released manually Hydraulic System Pressure 22Mpa Backhoe Digging Force 46.5KN Loader Bucket Breakout Force 31KN Bucket Lifting Time 5.4S Bucket Lowering Time 3.1S Bucket Discharge Time 2.0S Standard Configuration Front loader bucket & rear backhoe bucket; Deluxe cab with interior, heater and fan; Adjustable deluxe rotating seat & adjustable dashboard; One spare valve for loader and backhoe respectively; Hydraulic pilot control; YUCHAI 85KW engine; 14-17.5 vacuum front tyres & 19.5L-24 vacuum rear tyres; Custom YJ280 gearbox; FEICHENG YUNYU drive axle; Lockable A/H type outriggers; Cushioned swing function for backhoe device
