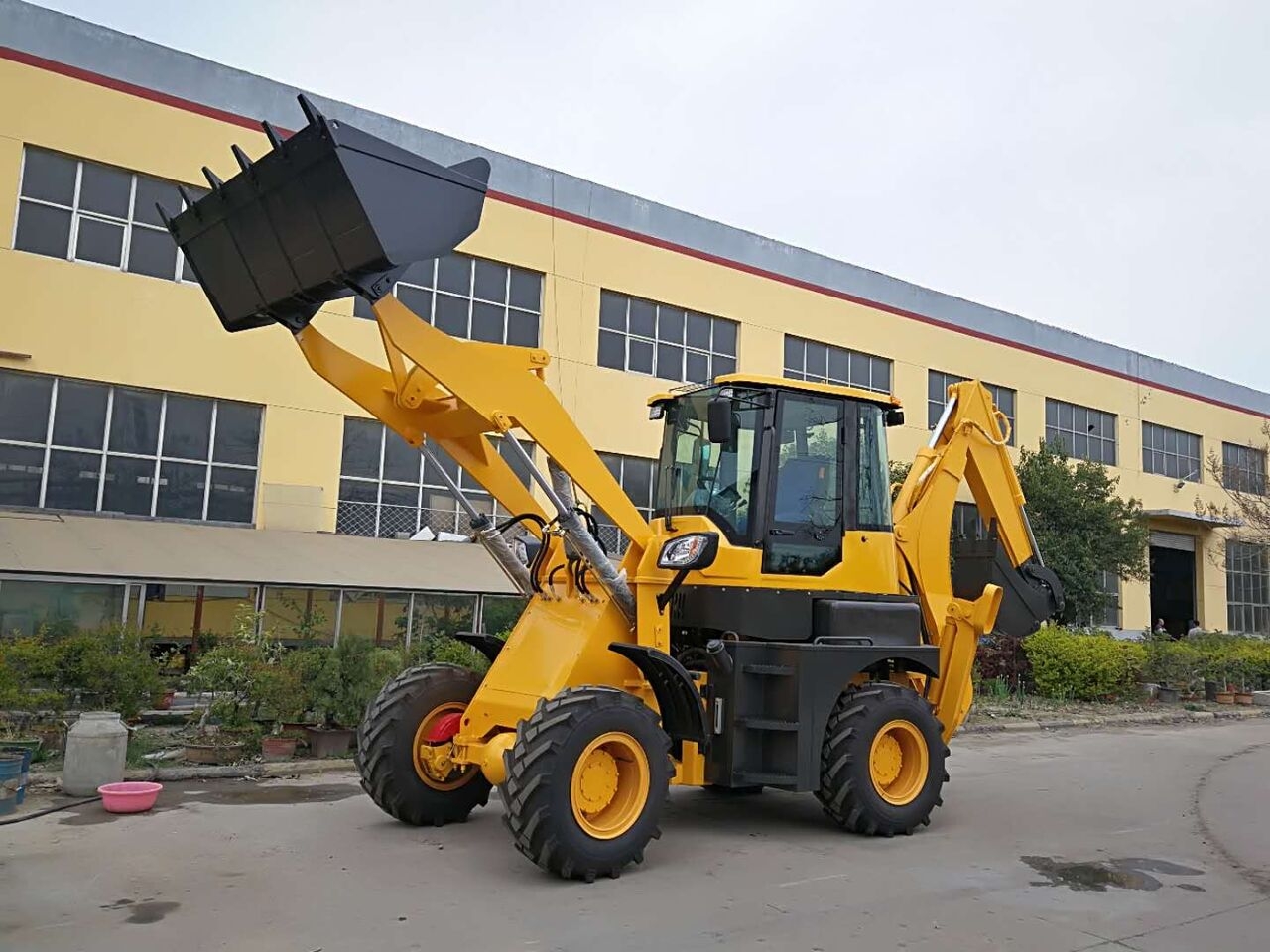

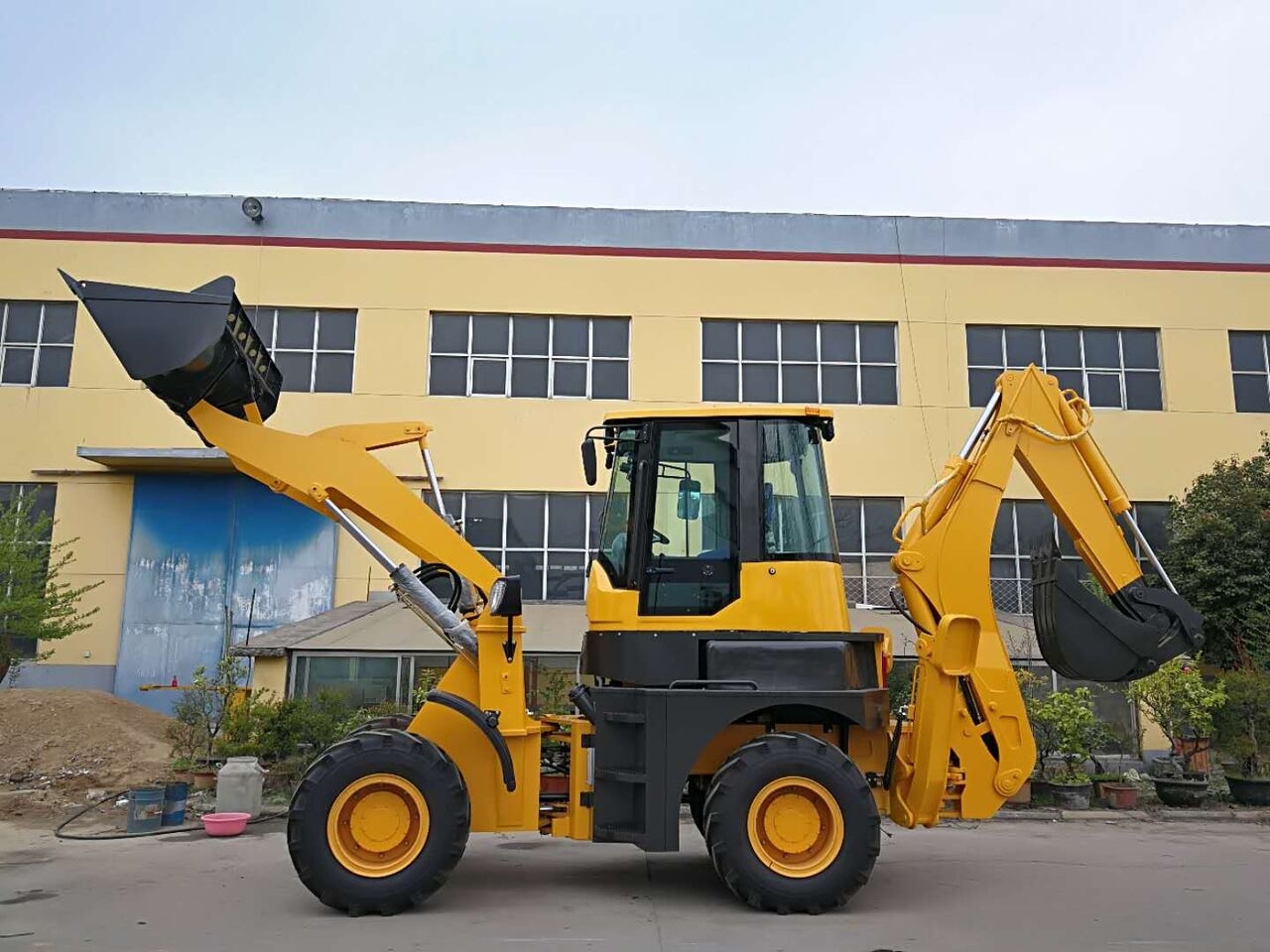

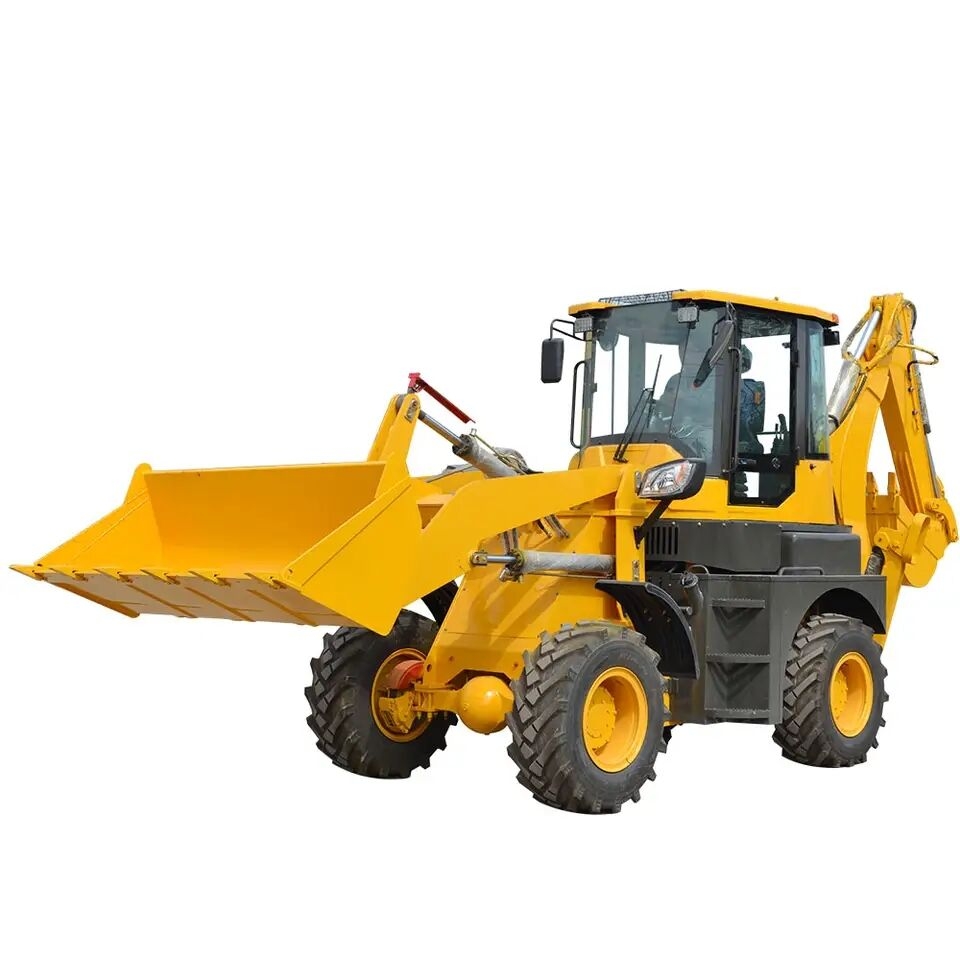

Backhoe loader HT30-25 Backhoe Loader HT30-25 Backhoe Loader

HT30-25 Backhoe Loader Parameter Overall Operating Weight: 6600KG Transport Dimension (LWH, mm): 7600×2100×3100 Wheel Base: 2250mm Min. Ground Clearance: 300mm Bucket Capacity: 1.3m³ Breakout Force: 38KN Loading Lifting Capacity: 2500KG Bucket Dumping Height: 3500mm Bucket Dumping Distance: 1022mm Digging Depth: 52mm Backhoe Capacity (Width): 0.3m³ (520mm) Max. Digging Depth: 4082mm Swing Angle of Backhoe: 1900° Max. Pulling Force: 39KN Engine Parameters Model: YUNNEI 4102 Turbo Type: In-Line Direct Injection, Four-Stroke, Water-Cooled Rated Power: 76KW Rated Speed: 2400r/min Displacement: 4.4L Steering & Hydraulic System Steering Angle: ±360° Min. Turning Radius: 5018mm System Pressure: 12Mpa Axle & Transmission System Axle Model: Wheel Hub Reducer Final Reducer: Single-Stage Final Reducer Gearbox Type: Power Transmission Gears: 2 Forward / 2 Reverse Torque Converter Model: YJ280 Torque Converter Type: Single-Stage Three Elements Cooling Method: Oil-Cooling Pressure Circulation
