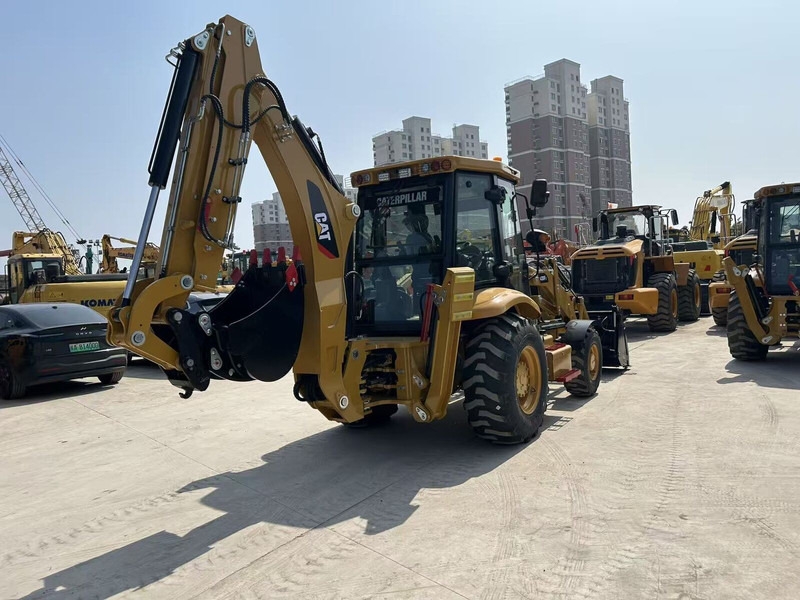

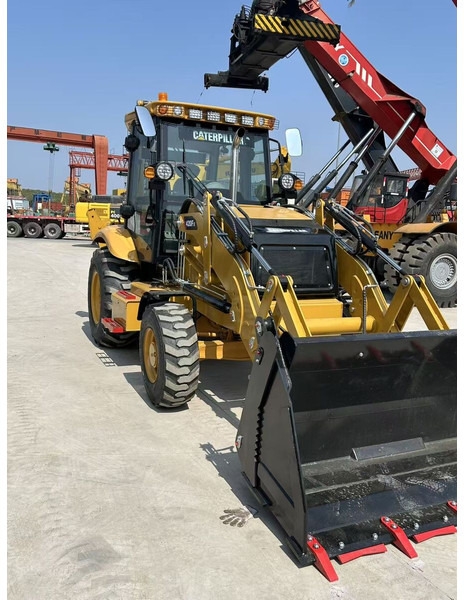

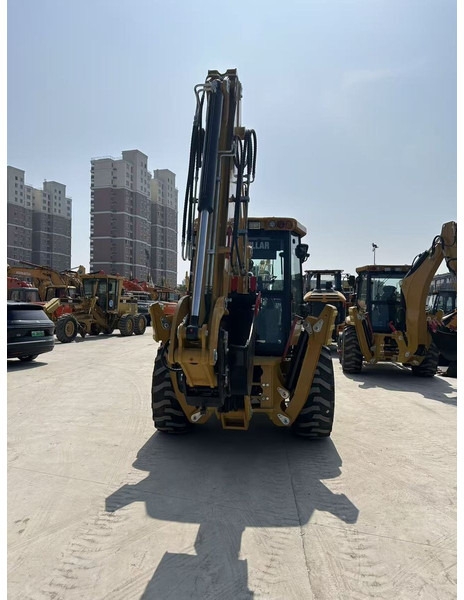

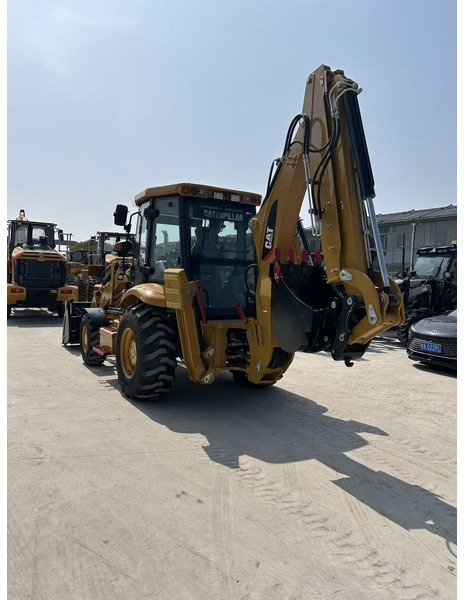

Backhoe loader 420 420

CAT 420F2 Backhoe Loader Specifications Overall Dimensions (Transport) • Overall Length: 7170 mm • Overall Width: 2320 mm • Overall Height: 3580 mm • Minimum Turning Radius (outside front tire): 8180 mm • Wheelbase: approx. 2700 mm • Ground Clearance: approx. 420 mm Weight • Operating Weight (min): 7726 kg • Operating Weight (max): 11000 kg Loader End • Bucket Capacity: 0.96 m³ • Max Dump Height: 2679 mm • Breakout Force: 49.8 kN • Lift Time: approx. 4.5 s Backhoe End • Max Digging Depth (standard stick): 4360 mm • Max Digging Depth (extended stick): 5440 mm • Max Digging Radius (ground level): 6700 mm • Max Dump Height (standard stick): 3642 mm • Max Dump Height (extended stick): approx. 4170 mm • Stick Digging Force: 64.1 kN Performance • Max Travel Speed: 40 km/h • Drive: 4WD / 6-speed automatic transmission • Hydraulic System: closed-center axial piston pump, flow 163 L/min • System Pressure: 248 bar (3600 psi) • Tires: Front 340/80R18, Rear 19.5L-24 **More information** Year of manufacture: **2026** Warranty: **12 months** Digging depth: **4360 mm** Excavator bucket: **0.96 m^3** Loader bucket: **1.3 m^3** Digging depth: **4.36 m** Digging radius: **2.68 m**
