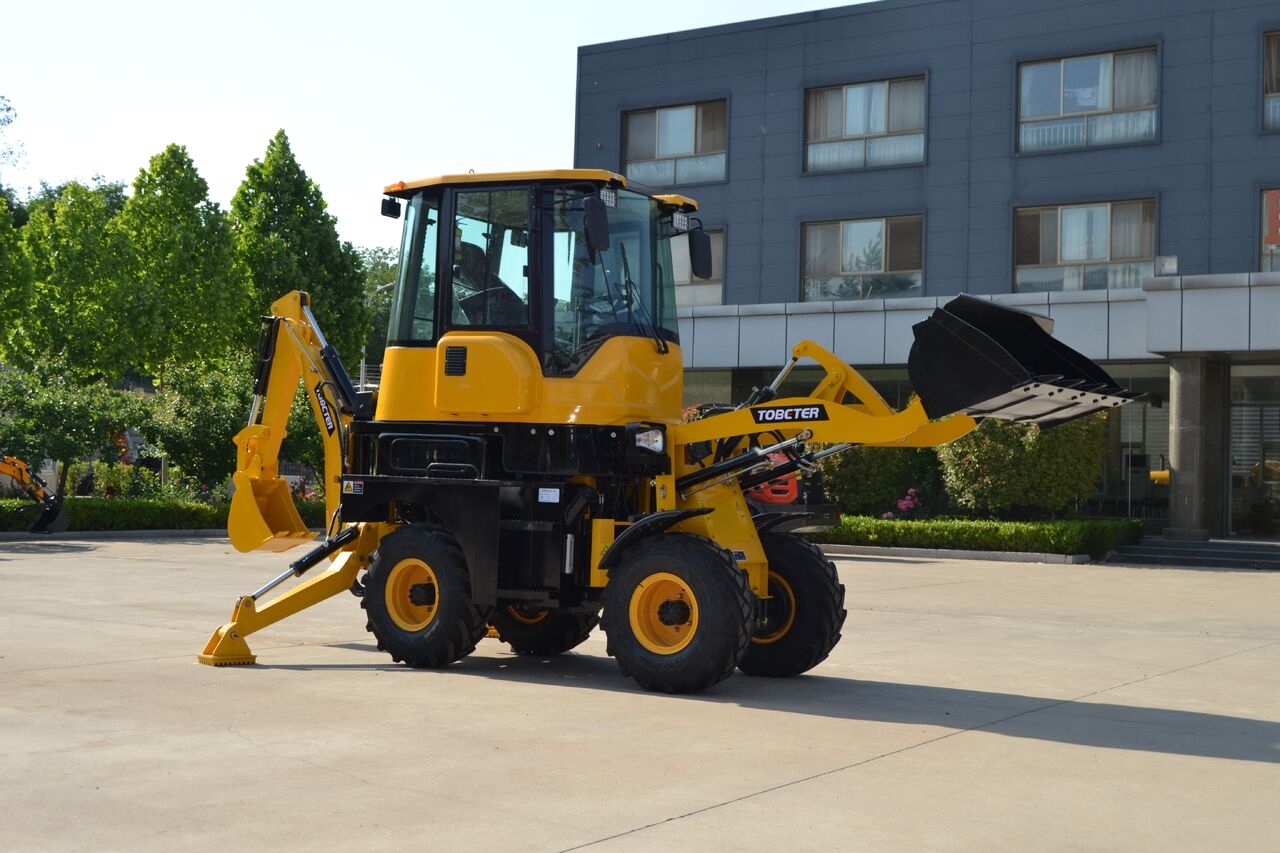

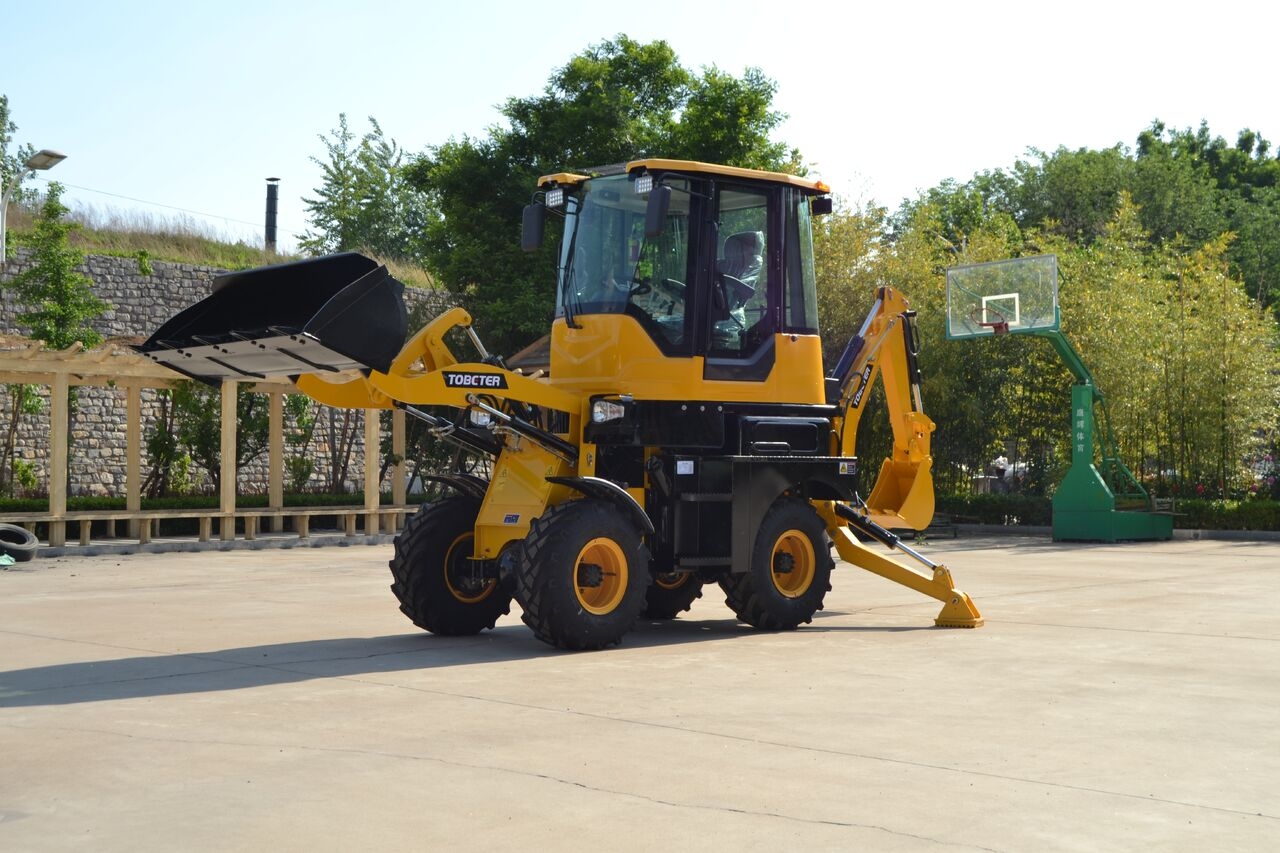

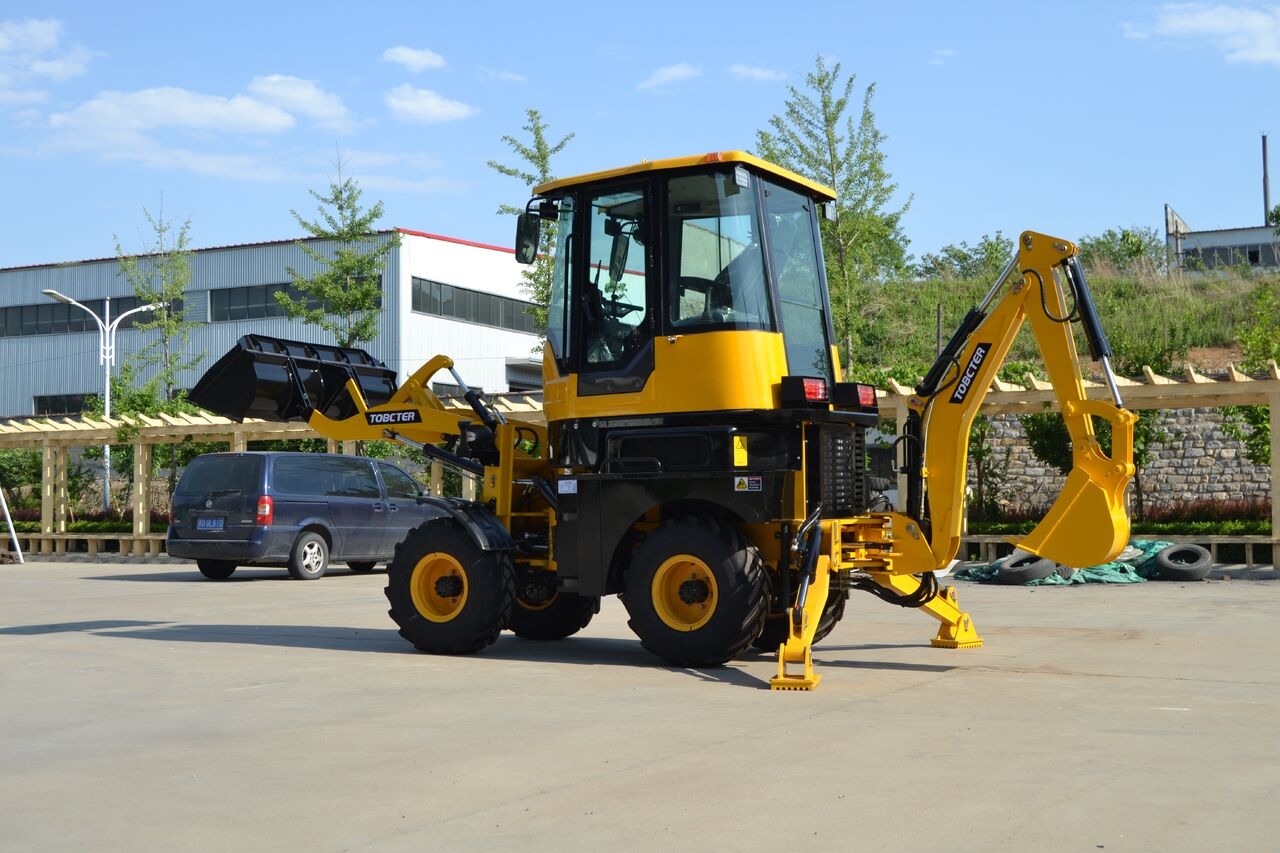

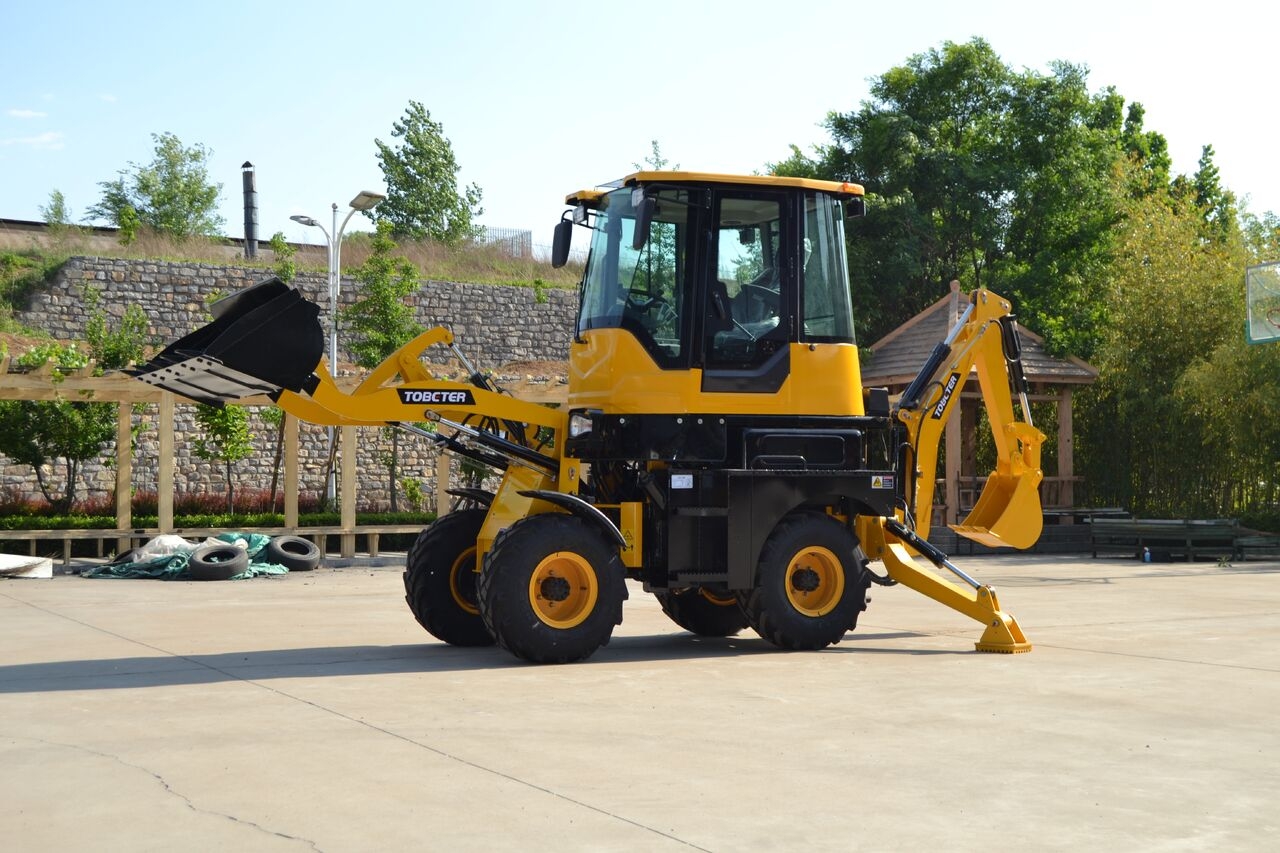

Baggerlader HT15-10 backhoe loader HT15-10 backhoe loader

HERACLES- WZ15-10 backhoe loader Parameter Overall Dimension: 6800x1650x2960mm Rated load 1000kgs Operate weight 3950kgs Bucket width 1650mm Bucket capacity 0.7m³ Dig bucket capacity 0.1m³ Max. dumping height 2350mm Max. digging depth 2000mm Dumping distance 1050mm Engine Model YUNNEI engine Rated power 42KW Engine Type In-line, water-cooling, 4 stroke, direct inject Optional model Same with offer sheet Storage Battery 80 A free-maintenance Gearbox model Mechanical or hydraulic Axle Isuzu drive axle(drum brake) Drive model Four wheel drive Steering angle ±35° Min. Turning Radius 4500mm Steering Type Articulated type full-hydraulic power steering Service brake Drum brake(Expanding shoe brakes) Parking brake Hand operate, disc brake Tyre Model 20.5/70-16
